Pipe Fitter Training in Multan
Practical Industrial Pipe Fitting Training at Ashtar Trade Test
Learn practical pipe fitting skills in a real workshop environment at Ashtar Trade Test & Technical Training Centre in Multan. Master isometric drawing reading, pipe measurement, centerline layout, flange alignment, valve assembly, pipe supports, and trade-test-oriented preparation.
Professional Pipe Fitter Training in Multan
Pipe Fitter Training is a specialized technical discipline centered on assembling, aligning, installing, and maintaining industrial piping systems. Pipe fitters work across power plants, oil refineries, chemical facilities, water treatment structures, and industrial manufacturing plants. Unlike general mechanical assembly, pipe fitting requires a combination of drawing interpretation, precise measurement, mathematical calculations, component selection, and joint alignment.
Practical workshop training prepares candidates to translate complex industrial isometric blueprints into physical piping assemblies. Trainees learn to measure pipe cut-off lengths accurately, account for fitting center-to-face dimensions, mark centerlines using wrap-around tape, prepare pipe ends (beveling and threading), align raised-face flanges with two-hole level checks, position gate and globe valves correctly, and install pipe hangers and supports.
Ashtar Trade Test & Technical Training Centre provides hands-on Pipe Fitter Training at its physical campus on Usman-e-Ghani Road, near Brite Hall School, Multan. Candidates practice inside equipped workshop bays using real pipe spools, valves, flanges, vise stands, and alignment tools under instructor supervision. While training builds practical skill readiness and trade test confidence, final trade test results and employment depend on individual candidate performance and employer evaluation criteria.
What Does a Pipe Fitter Do?
Core daily activities and technical tasks performed by professional pipe fitters on industrial jobsites.
Why Practical Pipe Fitter Training Matters
Six practical advantages gained through hands-on workshop practice prior to jobsite deployment.
Hands-on Tool Mastery
Working directly with pipe vises, chain tongs, flange alignment pins, spirit levels, and bevel gauges builds tactile familiarity and mechanical competence inside an industrial setting.
Precision Calculations
Pipe fitting demands zero-tolerance accuracy. Practical practice teaches trainees how to measure center-to-center distances, deduct fitting allowances, and prevent costly material scrap.
Drawing Interpretation
Translating 3D isometric blueprints into physical 3D pipe spools is a required skill. Training develops rapid reading of line numbers, elevations, and bill of material symbols.
Systematic Fitting Methods
Trainees practice logical assembly sequences—from main run alignment to branch connection tacking—ensuring smooth coordination during plant construction.
Flange & Valve Knowledge
Understanding pressure ratings (Class 150-900), flange face types (RF, RTJ, FF), gasket materials, and valve flow direction arrows prevents installation errors.
Evaluation Confidence
Timed practical exercises prepare candidates for overseas trade test assessments conducted by international recruitment delegations and technical evaluators.
Isometric Drawing Training for Pipe Fitters
Mastering 3D piping drawing symbols, line orientation, offset angles, and Bill of Materials (BOM) decoding.
An Isometric Piping Drawing is a 3D pictorial representation of a piping system drawn at 30-degree angles. Unlike 2D orthographic plans (top and elevation views), an isometric drawing allows a pipe fitter to visualize length, width, and height in a single drawing.
At Ashtar TTC Multan, isometric training covers:
- Directional Vectors: Identifying North, South, East, West, Up, and Down line paths.
- Offset Triangles: Reading horizontal and vertical offsets (30°, 45°, 60° rolling offsets).
- Symbol Identification: Decoding elbows, tees, reducers, flanges, valves, instruments, and weld symbols.
- Bill of Materials (BOM): Matching item numbers with pipe diameter, schedule rating, and material specs.
Pipe Measurement and Layout Training
Practical instruction on measuring, marking, calculating fitting allowances, and pipe centerline layout.

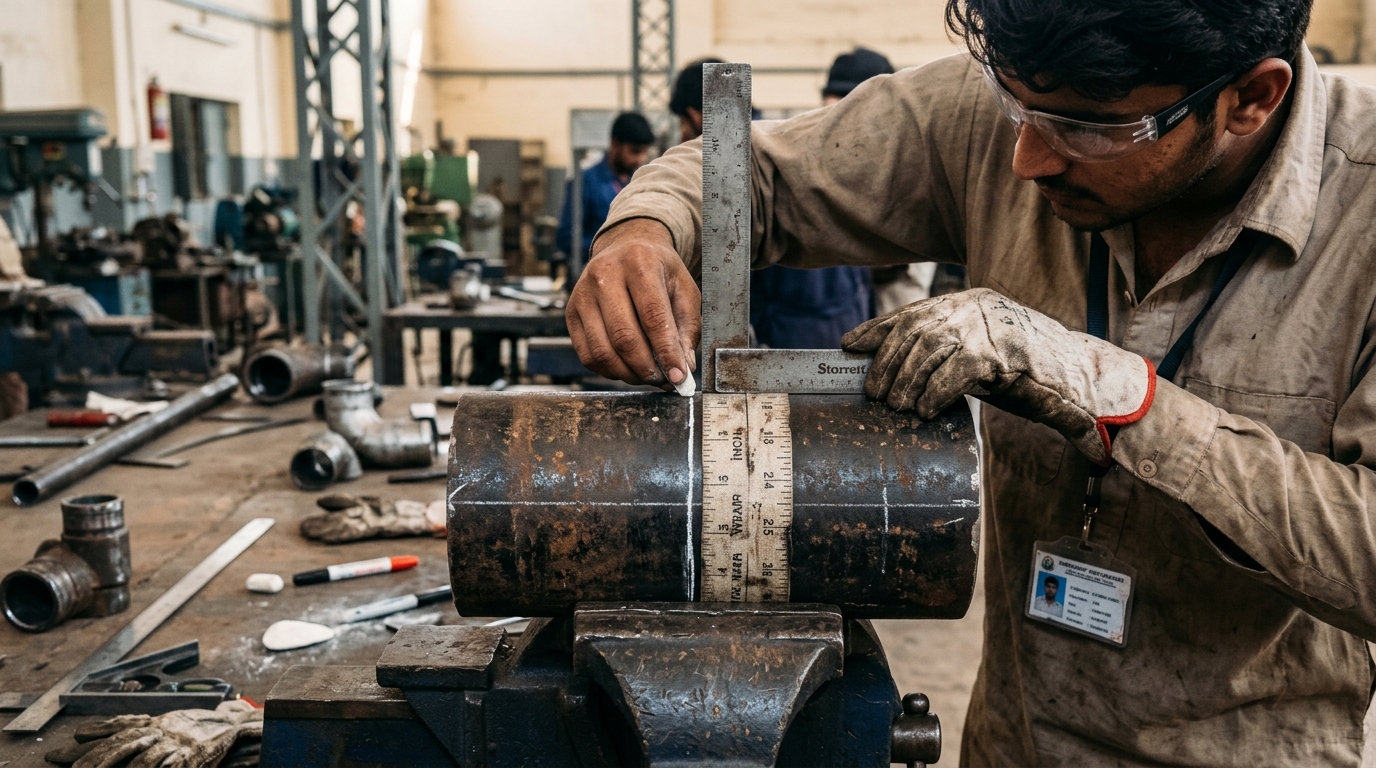

Accurate pipe measurement is the foundation of flawless pipe fitting. A minor miscalculation in fitting take-off can result in misaligned flanges or short pipe runs that fail jobsite installation checks.
Trainees practice:
- Fitting Take-off Deductions: Subtracting elbow center-to-face distances from total isometric dimensions.
- Wrap-around Tape Marking: Drawing true 90-degree circumferential cut lines around pipe barrels.
- Centerline Marking: Striking 4-point quadrant lines for branch connection alignment.
- Squareness Verification: Using framing squares and spirit levels to verify cut end squareness.
Practical Pipe Fitting and Assembly
Assembling carbon steel pipe spools, 90°/45° elbows, concentric reducers, and branch tees inside workshop bays.
Pipe assembly involves combining prepared pipe lengths with various forged steel fittings. Trainees learn to select components matching drawing schedules (Schedule 40, 80, 160) and pressure classes.
Hands-on practice covers setting uniform root gaps (typically 1.6mm - 3.2mm) using gap wire, aligning fitting centerlines, leveling horizontal runs with spirit levels, and securing joints with internal or external alignment clamps prior to welder tacking.
Flange Alignment and Installation Awareness
Weld-neck, slip-on, and blind flange alignment, two-hole level checks, gasket seating, and star-pattern bolt torquing.
Flanges are bolted connections that allow piping spools to connect to equipment nozzles, valves, and pumps. Improper flange alignment can cause severe gasket leaks during hydrostatic pressure testing.

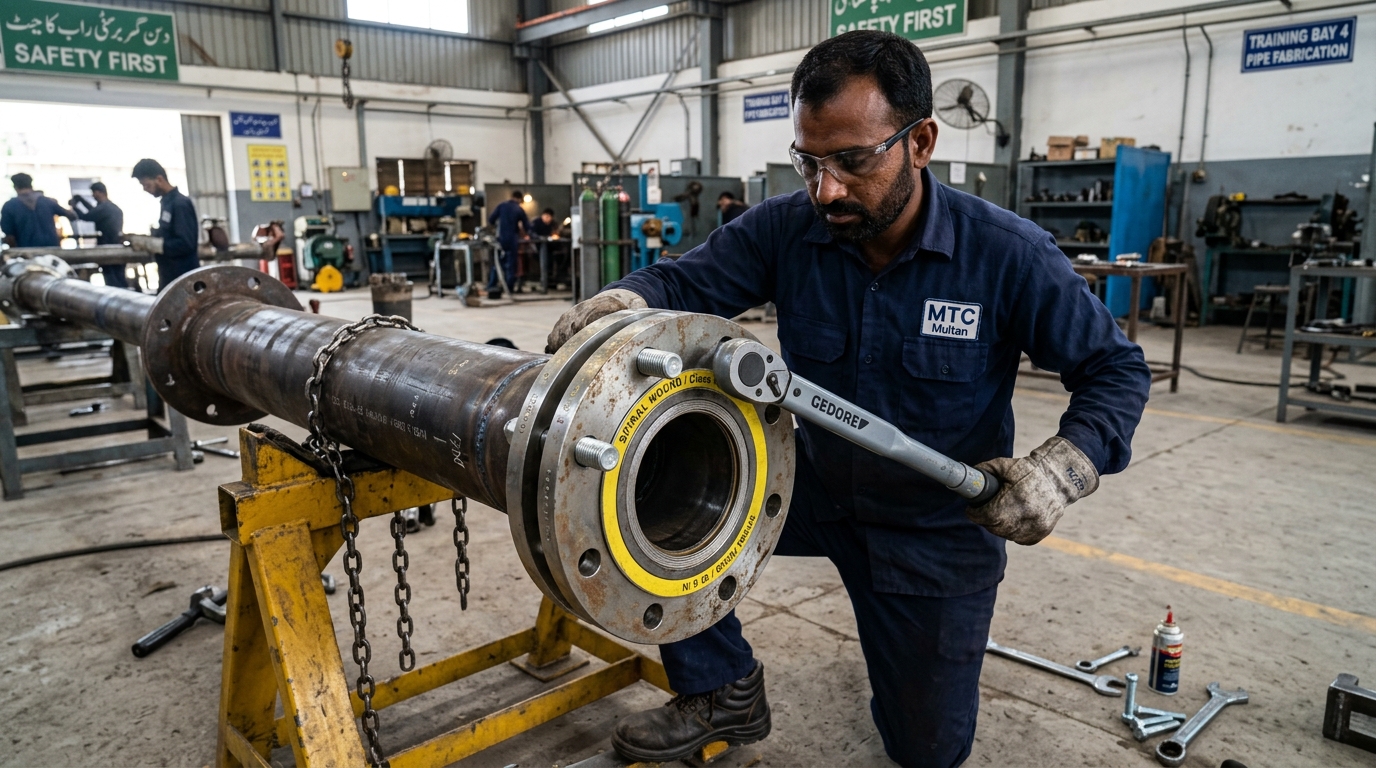

Flange training at Ashtar TTC covers:
- Two-Hole Level Checking: Ensuring top bolt holes align horizontally using a spirit level across pins.
- Flange Face Parallelism: Verifying uniform gap distance around the entire flange circumference.
- Gasket Seating: Installing spiral-wound, ring-type joint (RTJ), or neoprene gaskets without damage.
- Cross-Torque Tightening: Executing star-pattern bolt tightening sequences using manual torque wrenches.
Valves, Hangers and Pipe Supports
Identifying industrial valves, flow direction arrows, rigid pipe shoes, spring hangers, and expansion loops.
Industrial piping systems incorporate valves to regulate fluid flow and supports to absorb thermal expansion and vibration loads.
Trainees learn to identify gate valves, globe valves, ball valves, check (non-return) valves, and butterfly valves. Practical exercises emphasize checking valve flow orientation arrows prior to bolting.
Support training covers rigid pipe shoes, U-bolts, spring hangers, guide brackets, and anchor points according to isometric drawing hanger tags.
Pipe Preparation Skills
Beveling end preparation, threading carbon steel small-bore pipes, and joint cleaning before fit-up.
Before pipe spools can be assembled or welded, pipe ends must be properly prepared. For butt-weld joints, pipe fitters prepare 37.5-degree bevel angles with a 1.6mm root land using portable beveling machines or angle grinders.
For small-bore threaded piping (utility and instrument air lines), trainees practice operating power pipe threading machines, cutting NPT/BSPT threads, applying Teflon tape or thread sealant, and screwing threaded fittings using pipe wrenches.
Practical Pipe Fitting Workshop in Multan
Industrial workshop infrastructure designed for practical pipe layout, spool fabrication, and fitting practice.

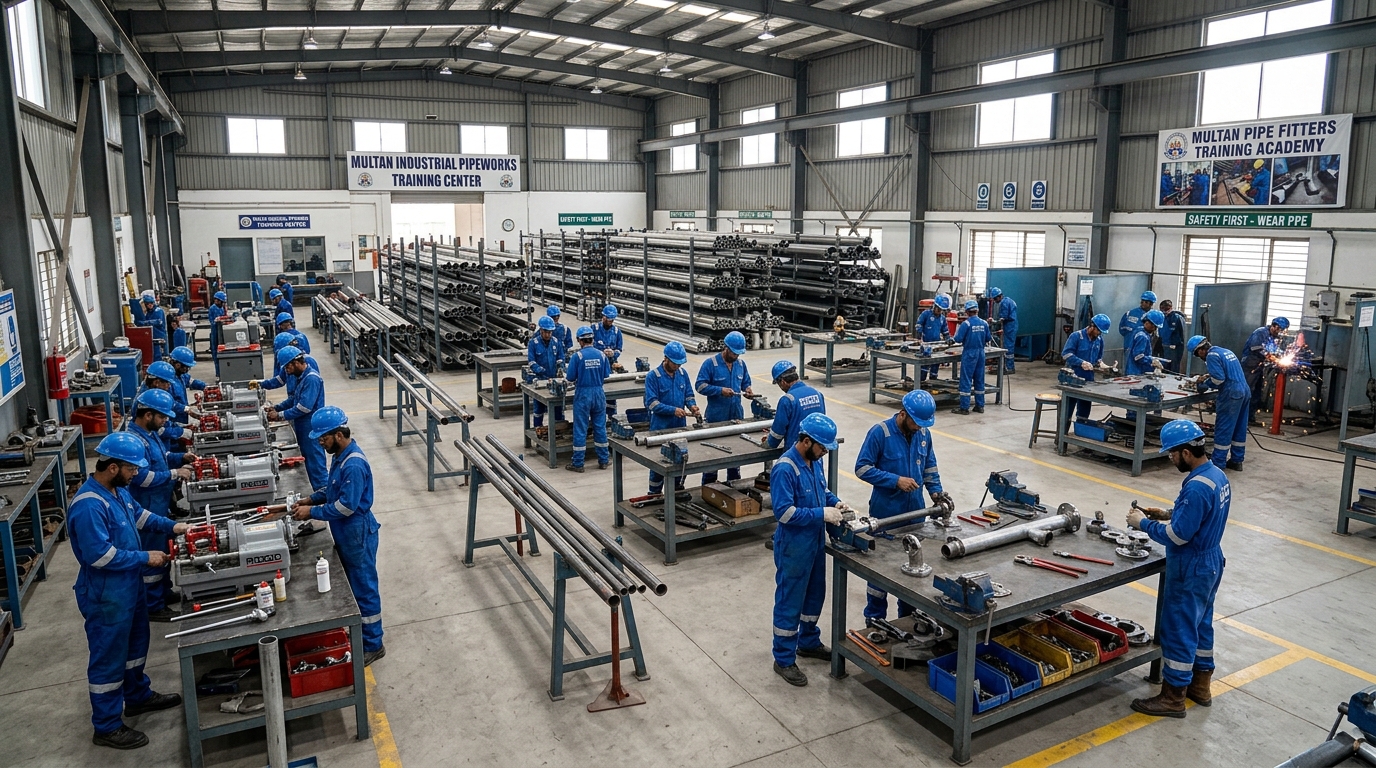

The Pipe Fitting Workshop at Ashtar TTC Multan is structured to simulate real refinery and plant construction fabrication yards.
Features include heavy pipe vise stands, pipe racks stocked with various schedules, bevel grinding stations, motorized threading die heads, flange alignment test rigs, and blueprint study tables.
Instructors supervise every stage of practice to ensure trainees develop safety discipline, proper PPE compliance, and tool care.
Pipe Fitter Trade Test Preparation in Multan
Supervised practice on typical trade test coupons evaluated by overseas recruitment delegations and technical auditors.

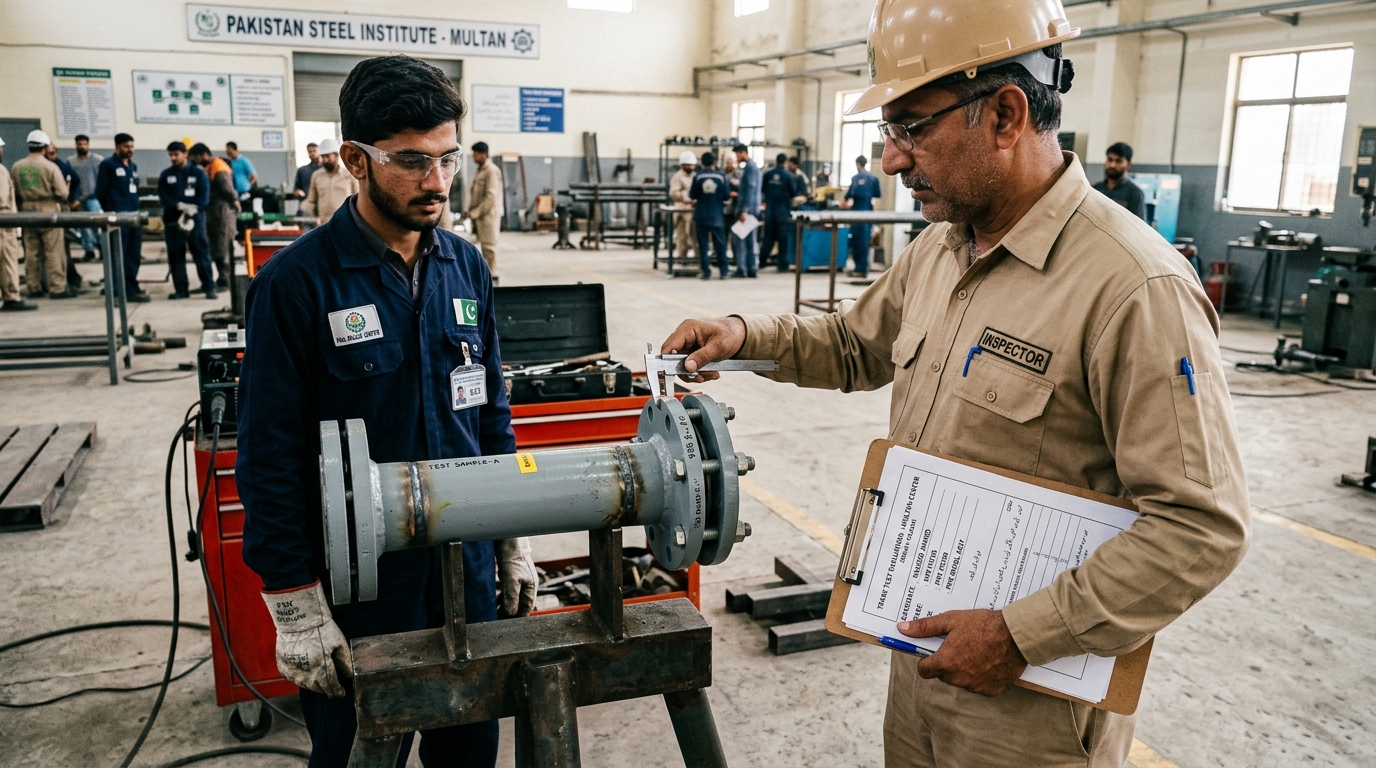

A Pipe Fitter Trade Test is a practical evaluation conducted by clients or overseas recruitment delegates to assess a candidate's ability to read a drawing, calculate pipe cut lengths, fit up a test spool, and align flanges within a specified time limit.
Trade test preparation at Ashtar TTC focuses on timed blueprint interpretation, rapid centerline layout, squareness verification, flange two-holing, and root gap setting.
Pipe Fitter vs Pipe Fabricator
Clear technical comparison between pipe fitting installation and pipe fabrication spool construction.
| Feature | Pipe Fitter | Pipe Fabricator |
|---|---|---|
| Primary Focus | Assembly, alignment & installation | Cutting, beveling & spool building |
| Work Location | Plant jobsites & piping racks | Offsite fabrication shop bay |
| Drawings Used | Isometric & plot plan drawings | Spool sheets & template layouts |
| Key Activity | Flange, valve & support bolting | Branch cutting & template layout |
Pipe Fitting and Welding Coordination
Understanding how pipe fitters prepare root gaps, fit-up alignment, and tack welds for 6G and pipeline welders.

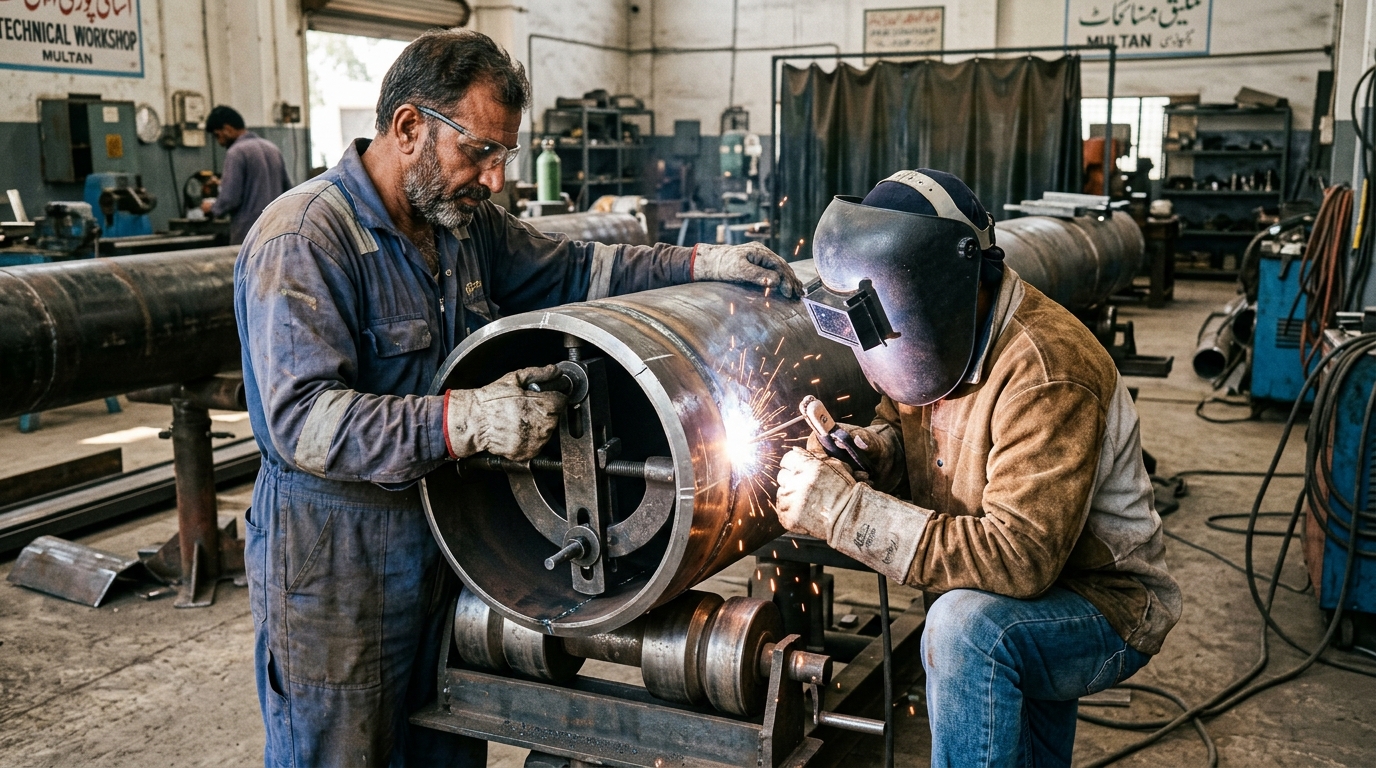

On industrial jobsites, pipe fitters and welders work as a synchronized team. The quality of a pipe weld depends directly on the accuracy of the fitter's joint preparation and root gap fit-up.
A skilled pipe fitter ensures correct root face land thickness, zero hi-lo mismatch, clean bevel surfaces, and stable bridge tacks, enabling the welder to achieve 100% X-ray quality root penetration.
Explore related welding programs:
Ashtar Trade Test & Technical Training Centre Multan
Factual overview of training facility, campus location, and contact information.

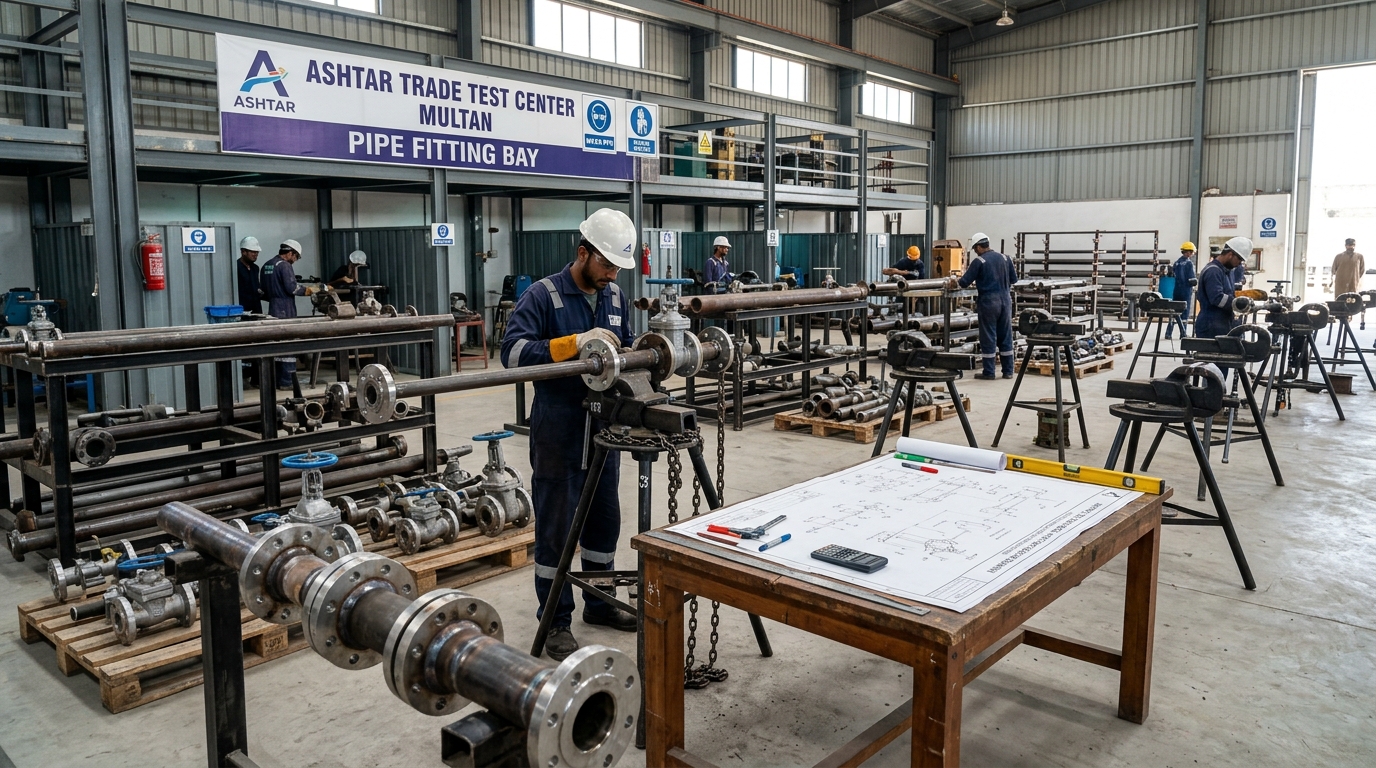

Pipe Fitting Workshop Bay
Dedicated practical piping bay with vise stands, pipe racks, threading equipment, and drawing tables.
Physical Multan Campus
Usman-e-Ghani Road, near Brite Hall School, Multan, Punjab, Pakistan.
Practical Equipment Exposure
Real carbon steel pipe spools, valves, flanges, gaskets, and alignment tools for hands-on learning.
Pipe Fitter Training in Pakistan
The physical practical workshop facility of Ashtar Trade Test & Technical Training Centre is strictly located in Multan, Punjab, Pakistan.
Candidates searching for pipe fitter training from cities across Pakistan—including Lahore, Karachi, Islamabad, Rawalpindi, Faisalabad, Peshawar, Gujranwala, Sialkot, Bahawalpur, Dera Ghazi Khan, Rahim Yar Khan, Sargodha, Hyderabad, Sukkur, and Quetta—are welcome to contact the center regarding current batch schedules and travel to Multan for onsite training.
Who Can Consider Pipe Fitter Training?
Target backgrounds suitable for practical industrial pipe fitting skill development.
Technical Beginners
Individuals interested in entering mechanical trades through structured blueprint reading and workshop fitting practice.
Industrial Mechanics & Fitters
General mechanical fitters seeking specialized skills in high-pressure piping, flange alignment, and isometric drawings.
Fabrication Assistants
Workshop helpers wanting to upgrade to formal pipe fitting and spool assembly responsibilities.
Trade Test Applicants
Candidates preparing for practical pipe fitting evaluations conducted by recruitment delegations.
Plumbers Upgrading Skills
Commercial plumbers transitioning to heavy industrial carbon steel piping and refinery systems.
Out-of-City Trainees
Welders and technical workers traveling from across Pakistan to complete onsite practical training in Multan.
Where Are Pipe Fitting Skills Used?
Major industrial sectors employing skilled pipe fitters for construction, plant modification, and maintenance.
Oil Refineries
High-pressure crude distillation piping, hydrocracker loops, and storage farm manifolds.
Power Generation Plants
High-temperature steam headers, boiler feed piping, and cooling water lines.
Chemical & Fertilizer
Stainless steel process lines, acid transfer piping, and gas compression spools.
Industrial Maintenance
Plant shutdown overhauls, valve replacements, gasket retrofits, and pipe spool repairs.
Pipe Fitter Training Course Details
| Course Title | Pipe Fitter Training |
| Training Provider | Ashtar Trade Test & Technical Training Centre |
| Campus Location | Usman-e-Ghani Road, near Brite Hall School, Multan, Punjab, Pakistan |
| Training Mode | Practical Workshop Training with Hands-on Spool Practice |
| Core Key Areas | Isometric drawings, pipe measurement, layout, fittings, flanges, valves, supports, beveling & trade test prep |
| Course Duration | Contact Ashtar for current active batch schedule |
| Course Fee | Contact Ashtar for current fee details and offers |
| Direct Contact Numbers | 0300-7365255 | 0300-7322762 |
